Now let’s look at what happens when we perturb a model’s input. We’ll compute bounds on its outputs over an input region, starting with interval bound propagation (IBP). Then we’ll try CROWN, which can retain more information about how the outputs depend on the inputs.

We’ll also check certificates exported by other tools. Each checker has a specific job: some recompute bounds, while others only check the consistency of supplied bounds and witnesses.

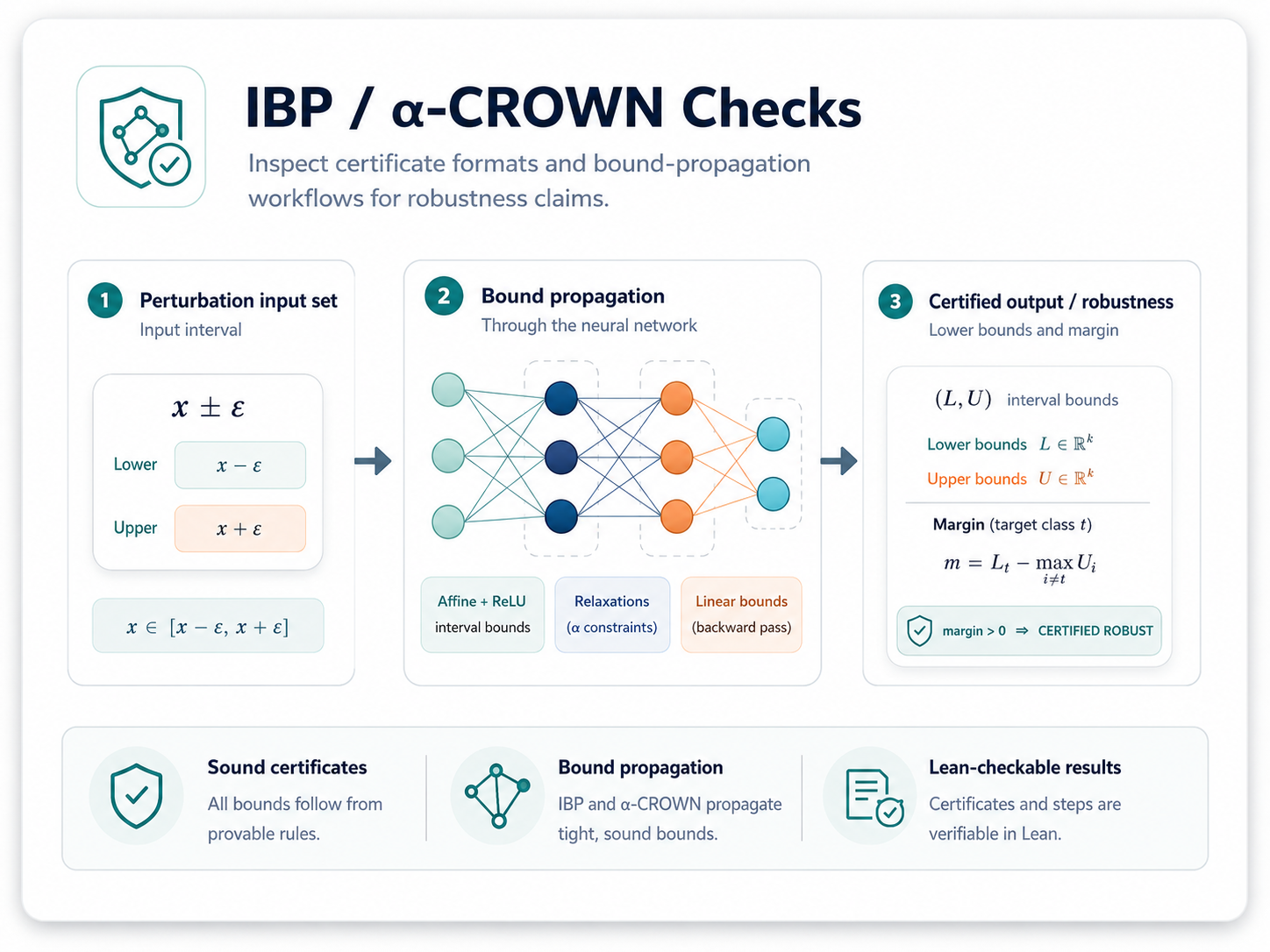

IBP and alpha-CROWN verification example

The Question

The robustness question we’ll work with is:

For every input inside a small box around the example point, can the model’s output still satisfy the desired margin or safety condition?

To ask it in TorchLean, we need four things:

The common path is therefore:

  1. write or import a TorchLean model,
  2. lower it to NN.IR.Graph,
  3. attach an input box,
  4. run a bound engine,
  5. inspect or check the output bounds.

The reusable workflows under NN/Verification/Builtin/ keep the model, input box, output property, and bound pass together. Imported weights need to be attached to a supported graph. External verifier leaves use a separate artifact reader; that reader does not recompute their bounds.

Let’s build an input box for a small MLP. We’ll use inputCenter as its center and eps as its radius, then insert the flattened inputBox at the lowered input node:

let inputCenter : Tensor α [2] :=
  Tensor.map cast ([0.5, 0.8] : Tensor Float [2])
let eps : α := Runtime.ofFloat 0.1
let inputBox : FlatBox α := NN.Verification.Builtin.lInfBall (α := α) inputCenter eps
let ps : ParamStore α := lowered.seedInputBox inputBox

The pass propagates the input box

\[[\mathtt{inputCenter}-\mathtt{eps},\mathtt{inputCenter}+\mathtt{eps}].\]
let ibp := lowered.runIBP ps
let outB ← IO.ofExcept (lowered.outputBox? ibp)

The bound engine returns node-indexed FlatBox values. Each box stores a flattened dimension plus lower and upper tensors. A sound output enclosure satisfying $\mathrm{lo}[\mathrm{label}]>\max_{\mathrm{other}}\mathrm{hi}[\mathrm{other}]$ establishes that label for every input in the seed box. The rounded CLI passes below calculate candidate enclosures. Applying this argument to them requires a soundness theorem covering the graph, parameters, and arithmetic; the printed bounds alone do not supply that proof.

IBP: Propagate Boxes Through The Graph

Interval bound propagation assigns a lower and upper bound to each node. A sound transformer for an operation must enclose all possible outputs of that operation when its inputs range over their current boxes.

We can see how this works with one scalar. Suppose

\[x \in [-1,2], \qquad y=3x+0.5.\]

IBP computes

\[y \in [3(-1)+0.5,\;3(2)+0.5]=[-2.5,6.5].\]

For a ReLU node, the transformer is monotone:

\[z \in [\ell,u] \quad\Longrightarrow\quad \operatorname{ReLU}(z) \in [\max(0,\ell),\max(0,u)].\]

For a linear layer, the implementation bounds each coefficient-times-input product at both endpoints and accumulates lower and upper sums with directed rounding. With a sound transfer, every true activation is inside the box, but the box may include values that cannot occur together.

That tradeoff explains both why IBP works well as a first verifier and why it can fail to certify true properties. It is fast, local, and easy to compose over graphs; it loses correlations between coordinates.

A Margin Example

Let’s apply this to a classifier with two logits. To certify class $0$ against class $1$, we want:

\[\operatorname{logit}_0-\operatorname{logit}_1 \geq 0.\]

If IBP gives

\[\operatorname{logit}_0 \in [1.2,1.8], \qquad \operatorname{logit}_1 \in [0.1,0.7],\]

then the margin is at least $1.2-0.7=0.5$, so the box certifies the property. If instead IBP gives

\[\operatorname{logit}_0 \in [0.8,1.4], \qquad \operatorname{logit}_1 \in [0.2,1.0],\]

then the lower margin bound is $0.8-1.0=-0.2$. The property is undecided at the IBP-box level. The model may still be safe; this abstraction was not tight enough for this input box.

CROWN-Style Affine Bounds

CROWN-style passes keep affine upper and lower forms instead of only interval boxes. In other words, the bound can say more than “this node lies between two numbers.” It can be “this node is bounded by a linear expression over the input variables.” That preserves more correlation information.

CROWN still uses IBP intervals, because nonlinear relaxations need pre-activation ranges. Forward CROWN stores affine lower and upper forms for nodes with respect to the chosen input node. Backward CROWN starts from one scalar objective, such as $\operatorname{logit}_0-\operatorname{logit}_1$, and propagates that objective back to an input-box bound.

For ReLU, the affine relaxation depends on the pre-activation interval:

We can ask our lowered graph for a CROWN output box. On the CLI’s rounded backends, this uses directed backward bounds for the output coordinates. Backends supporting exact affine reassociation instead use the nodewise CROWN sweep. Either path can retain an IBP enclosure when no affine transfer is available:

let crown ← IO.ofExcept (lowered.outputBoxCROWN? ps inputBox)

The result is another FlatBox for the output node. It need not improve on IBP. The separate Verification.runCROWN API returns nodewise affine bounds when those intermediate objects are needed, rather than only the final output box.

For a margin objective, the backward pass asks for a bound on one scalar expression, such as $\operatorname{logit}_0-\operatorname{logit}_1$. Instead of bounding every output independently, this lets the verifier push a single objective backward through the graph:

let objV : Tensor α [3] :=
  Tensor.map cast ([1.0, -1.0, 0.0] : Tensor Float [3])
let obj : FlatTensor α := { n := 3, v := objV }

let objectiveBox ← IO.ofExcept (lowered.backwardObjectiveBox? ps ibp inputBox obj)
let margin := getAtOrZero objectiveBox.lo [0]

margin is the reported candidate lower bound on $p_0 - p_1$ over the input box. Its semantic guarantee has the same soundness obligations as the output enclosure above.

backwardObjectiveBox? is runCROWNBackwardObjective applied to the lowered graph’s affine context, so the caller does not rebuild that context by hand.

The model, graph, bounds, and certificate checks all refer to the same node ids and tensor shapes.

Which Tensor Shapes Does The Bound Pass Accept?

Flattening a tensor into a box does not discard its graph shape. Matrix products promote vector operands and broadcast compatible leading batch axes: [2] times [2,3] gives [3], while [2,1,2,2] times [1,3,2,2] gives [2,3,2,2]. The contraction dimensions must match. IR evaluation, IBP, and CROWN share this shape contract. The directed backward pass bounds a binary product’s objective using its output IBP box; that fallback can lose correlations even when the shape is supported.

Concatenation accepts any valid axis and at least two parents, including empty dimensions and repeated parent ids. Dimensions off the selected axis must match. The backward pass splits coefficients by parent occurrence and adds the contributions when a parent appears more than once.

Convolution transfers accept groups, dilation, asymmetric padding, and arbitrary leading batch dimensions, with the configuration and payload checked together. The payload stores the full input-channel axis and selects each output channel’s group; it is not a packed group-weight tensor. Its affine representation is a dense matrix over flattened input and output coordinates, which can use much more memory than evaluating the convolution itself.

LayerNorm normalizes the whole suffix beginning at its chosen axis. On [2,2,2], axis one means two independent rows with normalized shape [2,2]; flattening all eight entries into one row would compute a different function. The scale and bias must have that exact suffix shape. Softmax value bounds likewise use the selected axis: an extent of one gives [1,1], while other extents use [0,1].

The derivative engine also computes first and mixed-second LayerNorm interval transfers over the normalized suffix, using the stored scale and a positive epsilon. Invalid shapes or failed finite arithmetic yield no bound. Softmax derivative transfers work along any valid axis when the scalar backend enables supportsIdealCoupledDerivatives; native Float and Float32 leave that capability disabled.

These rules describe executable bound propagation. The end-to-end real IBP theorem covers its named EngineCore fragment. Broader operator support does not discharge the local-transfer or rounded-execution assumptions in a certificate theorem.

What Each Command Shows

Let’s run the TorchLean examples first:

scripts/lake.sh exe verify -- torchlean-ibp
scripts/lake.sh exe verify -- torchlean-transformer-ibp --with-crown
scripts/lake.sh exe verify -- torchlean-crown-ops
scripts/lake.sh exe verify -- torchlean-mlp-workflow
scripts/lake.sh exe verify -- digits-train-certify --epochs=50 --eps=0.02 --max=100
scripts/lake.sh exe verify -- margin-report
scripts/lake.sh exe verify -- camera-box3d-cert

torchlean-ibp is the smallest graph-bound check: lower a TorchLean model, attach an input box, and propagate interval bounds to the output. torchlean-transformer-ibp applies attention and LayerNorm, then bounds their MSE against a fixed target; --with-crown also requests CROWN output and loss-objective bounds. torchlean-crown-ops uses the same graph style but adds forward and backward CROWN-style affine passes over softmax and MSE-loss operations. torchlean-mlp-workflow trains a classifier and then checks robustness through outputBoxPhasedCROWN? on the resulting graph. Rounded scalar backends use directed CROWN in that API; the phased α-CROWN pass requires exact reassociation. The requested input box seeds propagation in either case. The arithmetic used by these commands follows the same --arithmetic native|ieee flag as the examples.

digits-train-certify trains a small sklearn-digits classifier with Python, exports weights and test examples, then immediately loads them and runs bound and margin checks in Lean. margin-report checks the internal arithmetic of an exported logit-bound report; it does not establish the provenance of those bounds. vnncomp-mnistfc exercises a compact VNN-COMP-style fully connected MNIST network/property pair. camera-box3d-cert checks a camera projection certificate for a supplied finite point set by recomputing its projections and the claimed 2D envelope expanded by the artifact’s nonnegative tolerance. Eight cuboid corners are one choice of point set.

The MNIST runner labels its result numerically_refuted, not safe. It uses outward-widened host Float operations to refute the unsafe output region, but that executable result is not itself a Lean theorem about real-valued network semantics.

The MNIST workflow requires externally prepared weights and suite files, which are not bundled. After preparing the JSON artifacts described in the VNN-COMP artifact README, run:

scripts/lake.sh exe verify -- vnncomp-mnistfc \
  --weights=_external/vnncomp/mnist_fc/model_weights.json \
  --suite=_external/vnncomp/mnist_fc/suite.json

Typical output from the native CROWN example includes softmax bounds, an MSE-loss bound, a margin lower bound, and the backward objective bound. The exact numbers depend on dtype and runtime flags, but the shape of the output should look like this:

[IBP] p lo = ...
[IBP] p hi = ...
[CROWN] p lo = ...
[CROWN] p hi = ...
[CROWN-backward] margin lo = ...
[CROWN-backward] margin hi = ...

Then check the bundled alpha-beta-CROWN-style leaf artifact:

scripts/lake.sh exe verify -- abcrown-leaf

Run the compact LiRPA-style JSON fixtures:

scripts/lake.sh exe verify -- lirpa-mlp
scripts/lake.sh exe verify -- lirpa-cnn
scripts/lake.sh exe verify -- lirpa-attention
scripts/lake.sh exe verify -- lirpa-gru
scripts/lake.sh exe verify -- lirpa-encoder

These commands are good checks when changing certificate parsing or bound-replay utilities. Each bundled fixture names a small supported fragment, such as an MLP, convolutional head, attention softmax block, GRU gate, or transformer encoder block. Lean checks the artifact it receives; the fixture is evidence for the checker format and replay predicate, not a claim about every possible LiRPA producer.

To run the fast non-interactive checker suite:

scripts/lake.sh exe verify -- all

External Artifacts

The alpha-beta-CROWN leaf checker is a consistency checker for a declared leaf artifact. Vanilla alpha-beta-CROWN does not emit TorchLean’s JSON schema directly. The current path is: an external verifier exposes or dumps terminal leaf data, TorchLean’s exporter converts that data to abcrown_leaf_artifact_v0_1, and Lean checks the represented part of the artifact: box nesting, coverage of the root box by the leaves, compatible tensor dimensions, and the witness lower-bound test. It does not recompute the lower bounds.

The checker therefore relies on the producer for the correctness of the supplied lower bounds. It also cannot establish whether the JSON faithfully records the external verifier’s output.

The witness selects one output coordinate. The checker requires its lower bound to exceed the corresponding unsafe threshold. Mismatched dimensions and out-of-range witness indices are rejected. The implementation lives in NN.Verification.Cert.AbCrownLeafCert and its shared verification utilities.

We can try the leaf checker with the small bundled certificate, which is also its default input:

scripts/lake.sh exe verify -- abcrown-leaf \
  NN/Examples/Verification/AbCrown/sample_abcrown_leaf_artifact_v0_1.json

[artifact] Checked 1 leaves: ok=1, bad=0
[artifact] consistent: the leaves cover the root and every leaf clears its threshold.
[artifact] The lower bounds are the producer's claims; TorchLean did not recompute them.

To create that schema from a raw terminal-domain dump, use the TorchLean exporter:

python3 scripts/verification/abcrown/export_leaf_artifact.py \
  --input NN/Examples/Verification/AbCrown/example_raw_leaf_dump.json \
  --out _external/abcrown/leaf_artifact.json \
  --check

ABCROWN_ARTIFACT_OUT is the TorchLean side exporter hook. Use it from a small wrapper or instrumented external verifier to write the schema that Lean checks. The external search still owns the branch-and-bound run; TorchLean owns the exported artifact schema and the local witness predicate replayed by the checker.

Verification Results

Now that we’ve seen the commands, let’s distinguish what their results tell us:

When a command succeeds, cite the object and predicate it checked. For example, say that Lean accepted the abcrown_leaf_artifact_v0_1 witness predicate for a particular JSON file, or that the TorchLean graph IBP pass reported a margin computed for the stated input box and arithmetic. That phrasing is more precise than saying only that a verifier ran.
